What Your Trailer's Uneven Tyre Wear Is Trying to Tell You

Your trailer or caravan's tyres are constantly communicating with you - and uneven wear patterns are their way of flagging potential problems before they become costly repairs or dangerous failures. Understanding these patterns can save you money, improve safety, and extend your equipment's life..

The Three Main Uneven Wear Patterns

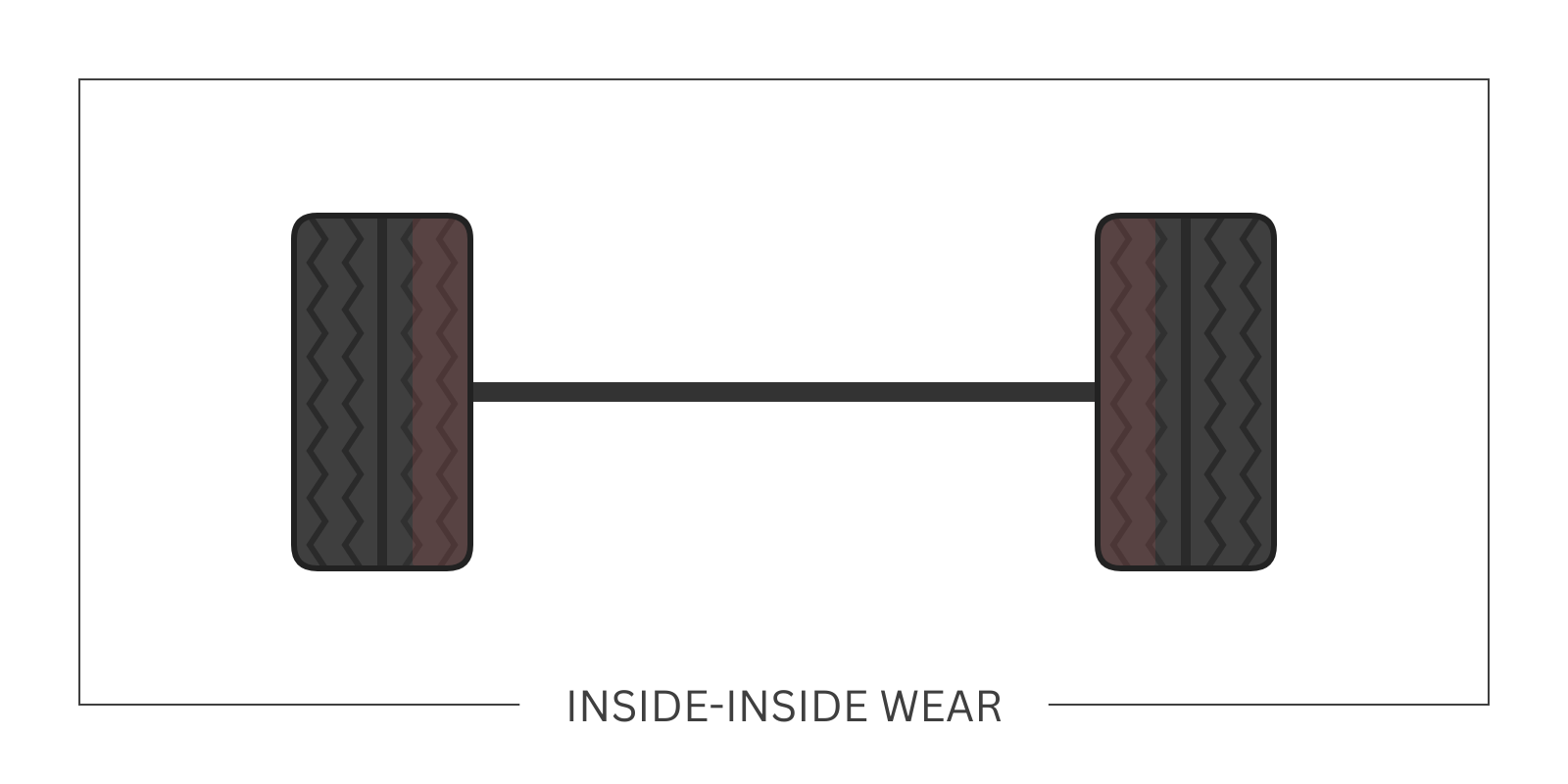

1. Inside-Inside Wear (Both tyres wearing on inner edges)

When both tyres on an axle show excessive wear on their inside edges, you're likely dealing with:

Alignment problems (toe-out):The tyres are angled outward, causing them to scrub as they roll. This creates heat, reduces fuel economy, and can lead to rapid tyre failure.

Overloading: Excessive weight causes the axle to bow downward, changing the tyre contact patch and concentrating wear on the inside edges.

Worn suspension components: Leaf springs, bushings, or equaliser systems that have deteriorated can alter wheel alignment significantly.

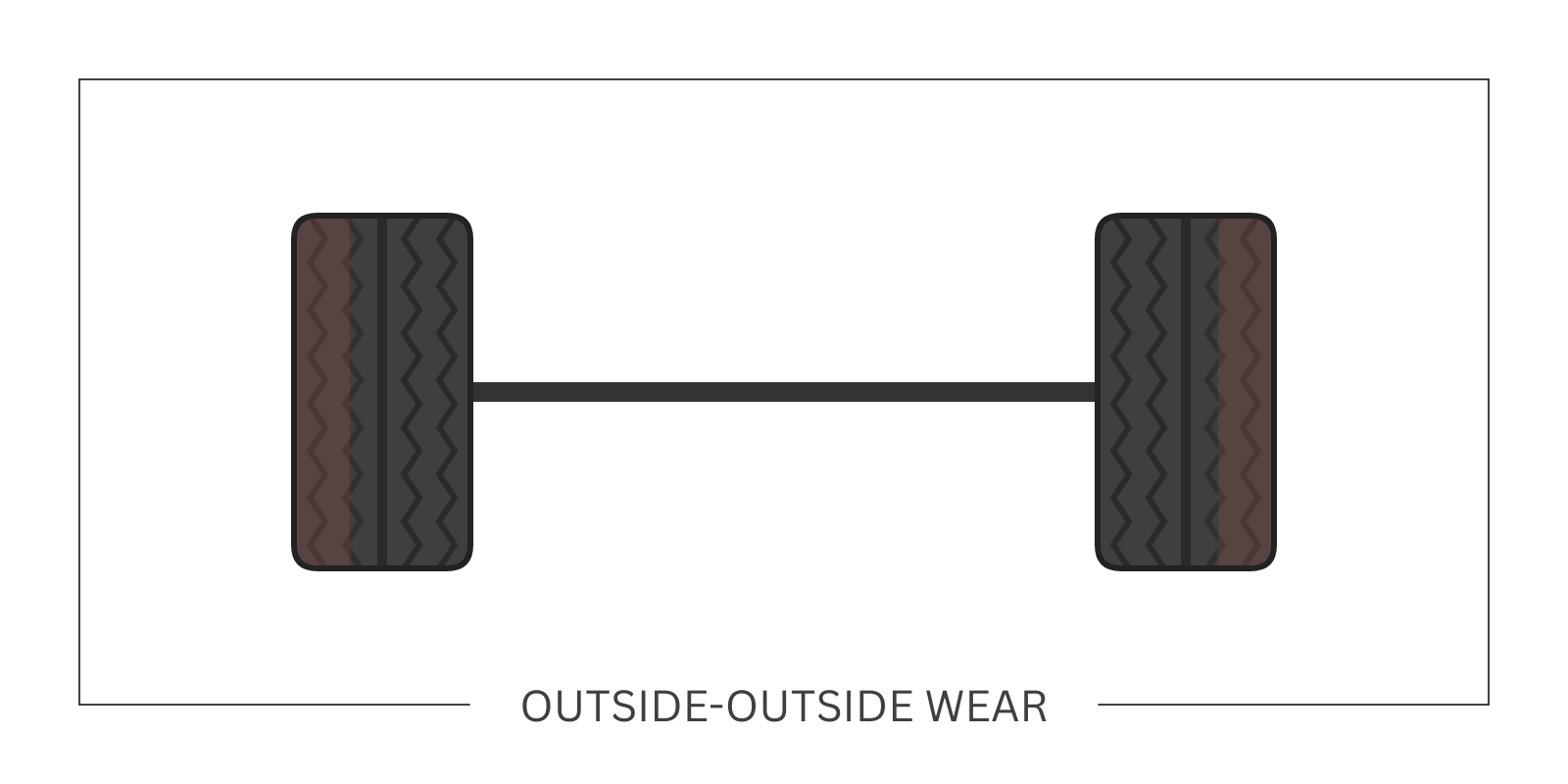

2. Outside-Outside Wear (Both tyres wearing on outer edges)

Outer edge wear on both tyres typically indicates:

Toe-in issues: The tyres are angled inward, creating the opposite problem to toe-out but with similar destructive results.

Under-inflation: Insufficient air pressure causes the tyre sidewalls to flex excessively, concentrating wear on the outer edges.

High-speed cornering: Consistently taking corners too fast for your trailer's design can cause this pattern, especially on single-axle units.

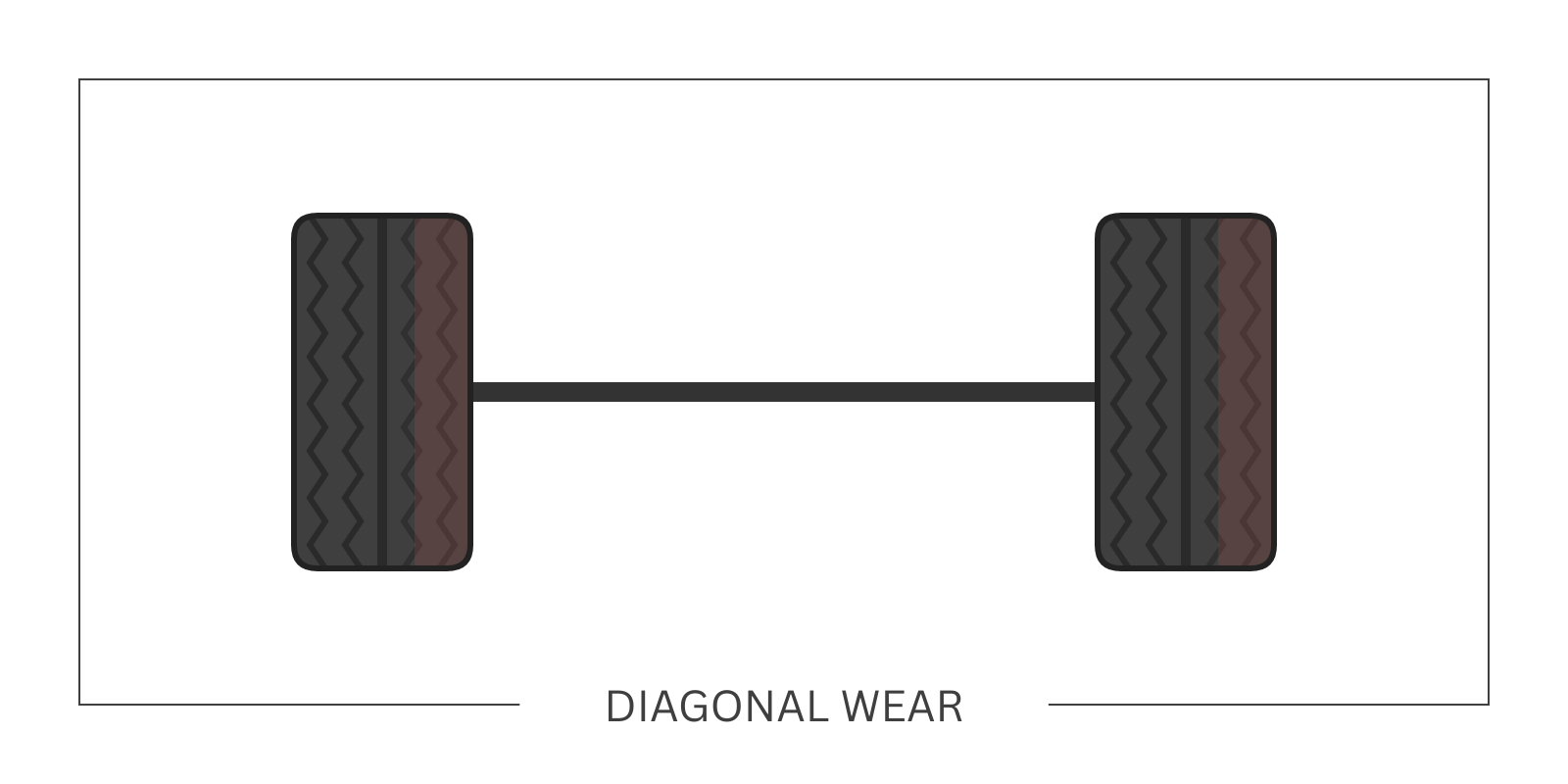

3. Inside-Outside Wear (One tyre inside, opposite tyre outside)

This diagonal wear pattern suggests:

Axle misalignment: The entire axle assembly may be skewed relative to the trailer frame, causing one wheel to toe-in while the other toes-out.

Bent axle: Impact damage from potholes, kerb strikes, or accidents can bend the axle, creating this distinctive wear pattern.

Frame damage: If the trailer frame itself is twisted or damaged, it can create complex alignment issues resulting in this cross-pattern wear.

Individual Tyre Wear Patterns: A Different Story

While the patterns above relate to both tyres on an axle showing similar wear, individual tyres can also develop their own distinctive wear patterns - and these tell a different story entirely. Rather than pointing to alignment or structural issues, individual tyre wear typically indicates pressure-related problems that affect each tyre independently.

Centre Wear vs. Edge Wear on Single Tyres:

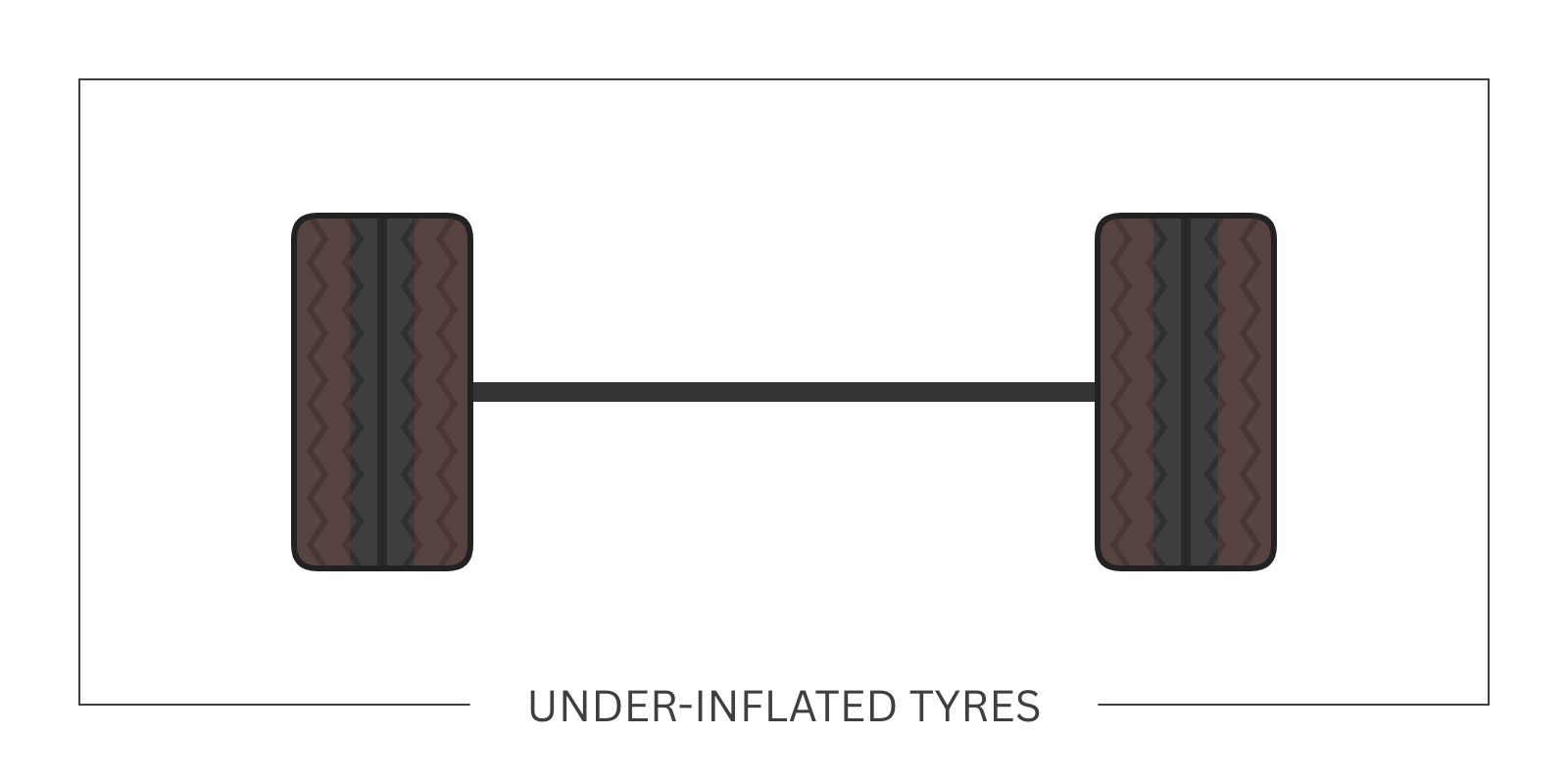

Over-inflation causes the centre of the tyre tread to bulge outward, concentrating the contact patch in the middle of the tyre. This results in accelerated wear down the centre while the edges remain relatively unworn. Conversely, under-inflation allows the tyre sidewalls to flex excessively under load, which lifts the centre of the tread away from the road surface. This forces the outer edges to bear the full weight, creating wear on both outer edges while the centre tread remains in better condition.

Unlike the alignment-related patterns discussed earlier, these pressure issues can vary from tyre to tyre based on individual inflation levels, making regular pressure checks across all tyres essential for even wear and maximum tyre life.

Why These Patterns Matter

When Should you Take Action?

Immediate attention required if you notice:

  • Rapid wear developing over just a few hundred kilometres

  • Severe wear patterns with visible cords or steel belting

  • Any tyre worn down to wear bars on one edge while the other edge appears new

  • Vibration or pulling while towing

Schedule inspection soon for:

  • Gradual development of any uneven wear pattern

  • Differences in wear between left and right tyres

  • Wear patterns that don't match your loading or usage patterns

Uneven tyre wear isn't just about replacing tyres more frequently. These patterns indicate underlying mechanical problems that can:

  • Compromise safety: Worn tyres are more prone to blowouts, especially at highway speeds

  • Reduce fuel economy: Misaligned wheels create rolling resistance, forcing your vehicle to work harder

  • Cause further damage: Ignoring alignment issues can lead to bearing failure, suspension damage, or frame problems

  • Create handling issues: Uneven wear affects how your trailer tracks behind your vehicle

Professional Diagnosis Makes the Difference

While understanding these patterns helps you identify problems early, proper diagnosis requires experience and the right equipment. What appears to be a simple alignment issue might actually be:

  • A bent axle requiring replacement

  • Worn suspension components affecting multiple systems

  • Frame damage that compromises structural integrity

  • Bearing problems creating secondary alignment issues

At The Trailer Caravan Service Man, we bring everything required for full inspection to your location. Our mobile service means we can assess your trailer or caravan where it sits, checking not just the obvious wear patterns but also measuring actual alignment, inspecting suspension components, and bearing condition.

Prevention Is Your Best Investment

Regular inspections catch problems before they destroy tyres. We recommend:

  • Monthly tyre pressure checks: Proper inflation prevents many wear issues

  • Post-incident inspections: Always check alignment after any impact, even minor ones

  • Load distribution reviews: Ensure you're not consistently overloading one side or area

The Bottom Line

Your tyres are telling a story about your trailer's mechanical health. While uneven wear might seem like just a tyre problem, it's usually a symptom of something more significant. Catching these issues early through proper diagnosis not only saves you money on tyres but prevents more serious mechanical failures down the road.
